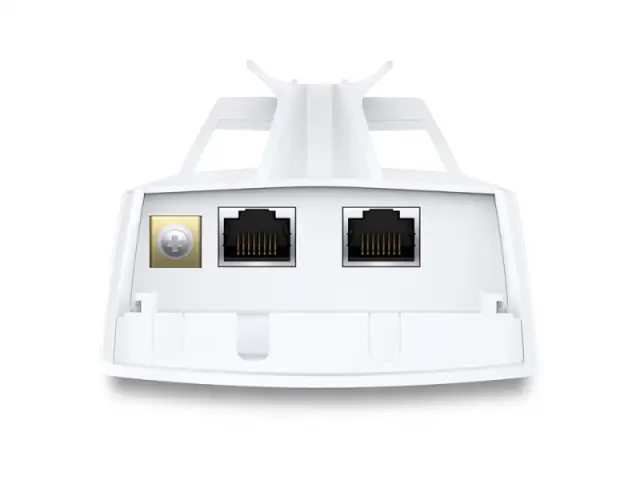

HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU, MIPS 24Kc Memory 64MB DDR2 RAM, 8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)1 10/100Mbps Shielded Ethernet Port (LAN1)1 Grounding Terminal1 Reset Button Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)Voltage range: 16-27VDC Power Consumption 10.8 Watts MaxNote: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm) Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional AntennaBeam Width: 60° (H-Plane) / 30° (E-Plane)Note: For more details, please refer to datasheet Protection 15KV ESD Protection6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic materialIPX5 waterproof Certification WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz,Dynamic)Up to 144.4Mbps (20MHz,Dynamic)Up to 72.2Mbps (10MHz,Dynamic)Up to 36.1Mbps (5MHz,Dynamic) Frequency 2.4~2.483GHzNote: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power 30dBm/1000mw (Adjustable power by 1dBm)Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES Wireless Configurations Pharos MAXtream TDMA Technology802.11b/g/n ModesSelectable Channel Width: 5/10/20/40MHzAutomatic Channel SelectionTransmission Power ControlDynamic Frequency Selection (DFS)WDS Enable/DisableSecurity: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP EncryptionSSID Broadcast Enable/DisableMulti-SSID with VLAN Tagging (AP mode only)Distance/ACK Timeout SettingWireless MAC Address FilterWireless Advanced:> Beacon Interval/RTS Threshold/Fragmentation>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management Discovery and Remote Management via Pharos Control applicationHTTP/HTTPS Web-based managementSystem LogSNMP Agent(v2c)Ping Watch DogDynamic DDNSSSH Server System Tools Wireless Signal Quality Indicators:Signal Strength/Noise/Transmit CCQ/CPU/MemoryMonitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCPSpectrum AnalyzerSpeed TestPingTraceroute System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applicationsHardware watch dog POE ADAPTER FEATURES Dimensions(W x D x H) 85.8×43.9×31.9 mm Interfaces 1 AC Jack with Earth Ground1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)1 10/100/1000Mbps Shielded Ethernet Port (Data) Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output 24VDC, 0.5A Max+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency >80% Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark OTHERS Certification CE, FCC, RoHS, IPX5 Package Contents Outdoor Wireless CPE24V 0.5A Passive PoE AdapterPole Mounting StrapsAC Power CordInstallation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~95% non-condensing Spletna stran izdelka: https://www.tp-link.com/en/business-networking/outdoor-radio/cpe220/#overview
