PODNOŽJE: AMD AM4
ZA PROCESORJE: AMD RYZEN
FORMAT: mATX format 24.4 cm x 20.5 cm
VEZNI ČIP: AMD A520
POMNILNIK:
2 x DDR4 DIMM (do 5000 (O.C.) MHz, odvisno od procesorja) do skupno 64GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora
GRAFIKA: DA, preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 3.0 x16
2 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000Mbit)
ZVOČNA KARTICA: Realtek ALC887 codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

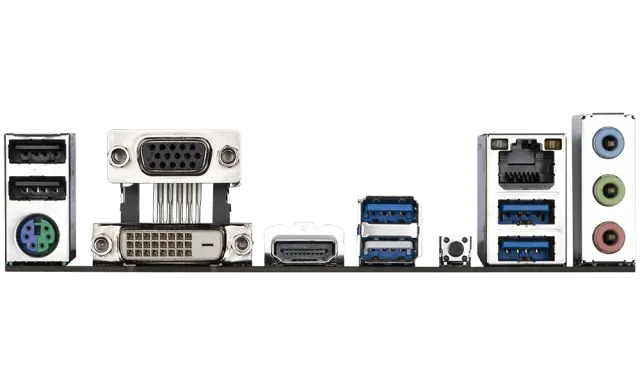

ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/A520M-S2H-rev-10#kf
