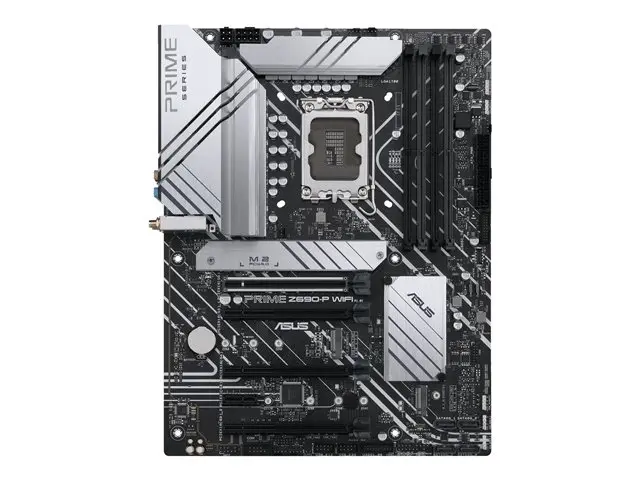

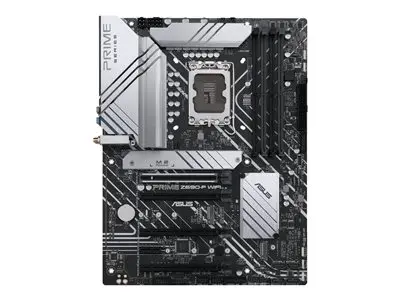

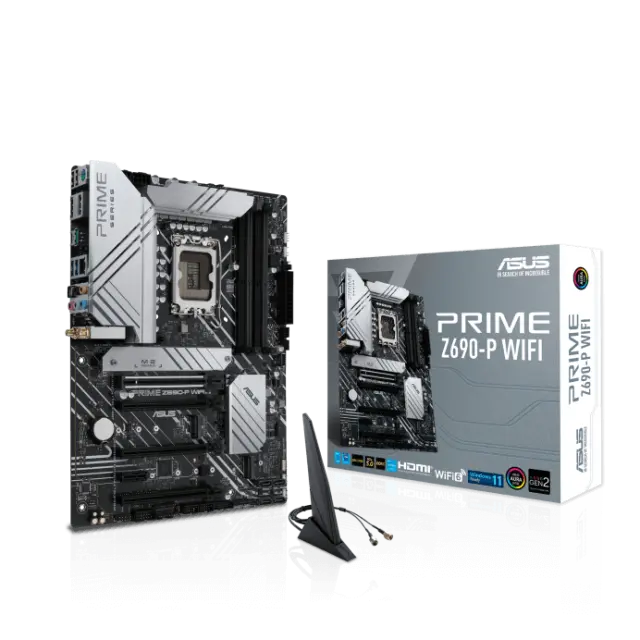

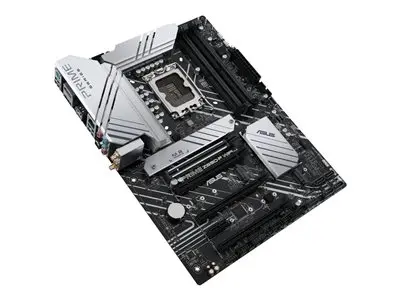

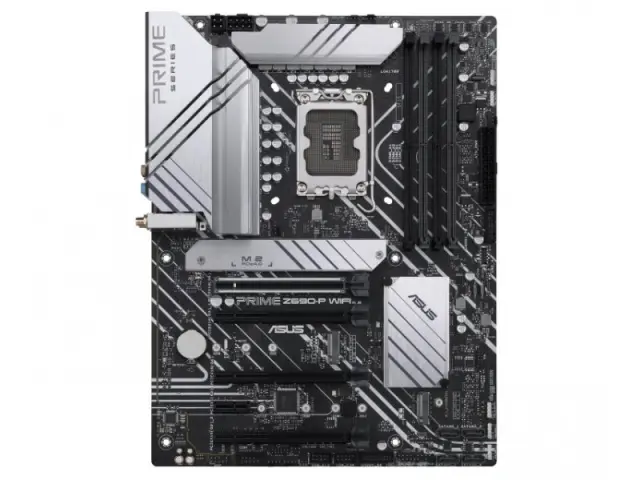

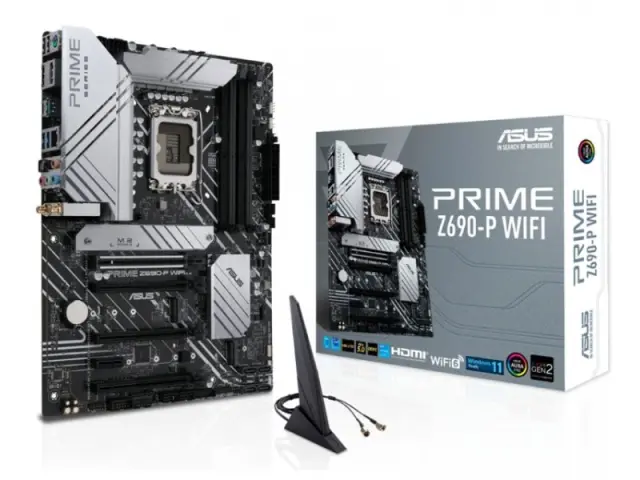

Intel® Z690 Motherboard (LGA 1700) ATX with PCIE® 5.0, DDR5, three slots M.2, 14 + 1 DRMOS, HDMI®, DisplayPort ™, Intel® WiFi 6, 2.5 GB Ethernet, USB 3.2 Gen 2x2 Type -C®, USB 3.2 Gen 1 Type-C® at the front, Compatible Thunderbolt ™ 4 and Lighting Aura Sync RGB
* Intel Socket® LGA 1700: Ready to accommodate Intel processors® 12e gen
* Improved power supply: 14 + 1 DRMOS, 8 + 4-pin PROCOOL connector, alloy coils and durable capacitors for stable power supply
* Complete Cooling: Large Radiator VRM, M.2 Thermal Dinker, PCH Sink, Hybrid Fan Connectors and Fan Xpert 4
* ASUS OPTIMEM II: Careful routing of plots and vias, more optimizations of the earth layer to preserve the integrity of the signal and thus improve the overclocking of the memory .
* New generation connectivity: DDR5, PCIe® 5.0, Intel® WiFi 6, 2.5 GB Ethernet, USB 3.2 Gen 2x2 Type-C®, USB Panel 3.2 Gen 1 Type-C® at the front, compatible Thunderbolt ™ 4 connector
Cpu Compatible with Intel® LGA1700 Gen. Intel® Core ™, Pentium® Gold and Celeron® *
Intel® Turbo BOOST 2.0 and Intel® Turbo Boost Max 3.0
Chipset Intel® Z690 Memory 4 x DIMM, max. 128GB, DDR5 6000 (OC) / 5800 (OC) / 5600 (OC) / 5400 (OC) / 5200 (OC) / 5000 (OC) / 4800 Non-ECC, Un-Buffered Memory *
Dual Channel Memory Architecture
Intel media® Extreme Memory Profile (XMP)
Optimem II
Graphic card 1 x DisplayPort 1.4
1 x HDMI® port
Extension slots 1 x PCIE 5.0 x16 + 1 x PCIE 4.0 x16 (max x4) + 2 x pcie 3.0 x16 (max x4)
Intel® 12th Gen processors *
1 x PCIE 5.0 / 4.0 / 3.0 x16 slot
Intel® Z690 Chipset **
1 x PCIE 4.0 / 3.0 x16 Slot (X4 Mode Media)
2 x PCIE 3.0 x16 Slots (X4 Mode Support)
1 x PCIE 3.0 x1 slot
Storage Support for 3 x slots M.2 and 4 x SATA 6GB / s ports
Intel® 12th GEN PROCESSORS
M.2_1 Slot (Key M), Type 2242/2260/2280/22110
- Intel® 12th Gen Processors PCIe Support 4.0 x4 Mode.
Intel® Z690 Chipset **
M.2_2 Slot (Key M), Type 2242/2260/2280 (PCIe Supports 4.0 x4
