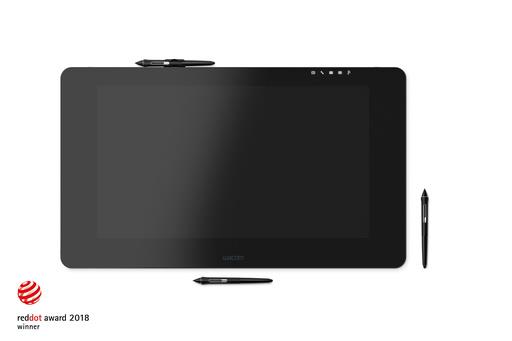

WACOM GRAFIČNI ZASLON CINTIQ PRO 24 PEN & TOUCH

Lastnosti:

• Vključuje Wacom Pro Pen 2, ki je na pritisk občutljivo, brezbaterijsko in brezžično pisalo z 8.192 nivoji površinske občutljivosti


• Pisalo pri vnosu praktično nima zamika in podpira nagib, na njem pa so tudi 3 nastavljivi gumbi


• 4K ločljivost (3840 x 2160 px) 24" LCD zaslona in izjemna reprodukcija barv (99% Adobe RGB barvnega prostora) poskrbita, da je na sliki vidna vsaka podrobnost


• Površina zaslona je iz posebnega, rahlo hrapavega stekla, ki daje občutek pisanja po papirju


• Wacom Cintiq Pro 24 touch lahko na Mac ali PC povežete le s priloženim USB-C kablom (za video in podatke), možna pa je tudi povezava z DisplayPort ali HDMI kablom, ki za podatkovni prenos potrebujeta še USB-C kabel


• ExpressKey Remote omogoča hiter dostop do 17 nastavljivih bližnjic, tipkovnica na zaslonu in okrogli meniji pa ponujajo še hitrejše delo


• Cintiq Pro 24 touch ima vgrajene nogice, ki omogočajo nagib od 5° do 20°

Vključuje:

• Wacom Cintiq Pro 24 touch


• Wacom Pro Pen 2 s kompletom 4 barvnih obročkov


• ExpressKey™ Remote (z USB-A RF sprejemnikom in 30cm micro-USB v USB polnilnim kablom)


• Stojalo za pisalo z 10 nadomestnimi konicami (6 standardnih, 4 posebne - "felt") in orodje za odstranjevanje konic


• Držalo za pisalo


• 180W AC adapter in 1,8 m napajalni kabel


• 1,5 m USB-C v USB-C kabel


• 3 m DisplayPort v DisplayPort kabel


• 3 m HDMI2.0 v HDMI2.0 kabel


• 3 m standardni USB-A v USB-A kabel


• Adapter DisplayPort v Mini DisplayPort


• Dokumentacija


• Čistilna krpica

Vse specifikacije (v angleščini):

• Product Type Creative Pen Display 24


• Model number DTH-2420


• Size 677 x 394 x 47 mm (26.65 x 15.5 x 1.9 inch)


• Weight 7 kg (15.43 lbs) without optional stand


• Screen Size (Measured Diagonally) 60 cm / 23.6 inch


• Technology IPS UHD high brightness panel


• Displayable Colors (maximum) 1.07 billion colors (10 bits color)


• Aspect Ratio 16:9


• Viewing Angle 176° (88°/88°) H, (88°/88°) V


• Contrast Ratio 1000:1


• Brightness 350 cd/m2


• Response Rate 12 ms


• Active Area 522 X 294 mm (20.55 X 11.57 inch)


• Color Gamut 99% Adobe RGB


• Industry Standard Pre-sets 6500° K whitepoint default


• Graphics Input USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI2.0 port required for 3840 x 2160 resolution.


• Multi-Touch Yes


• Pen Wacom Pro Pen 2


• Pressure Levels 8192, both pen tip and eraser


• Tilt Range 40 degrees


• Tilt Recognition ±60 levels


• Type Pressure-sensitive, cordless, battery-free


• Switches Tip switch, 2 side switches, eraser


• Nibs 10 (6 standard, 4 felt)


• Pen Box/ Holder Yes - Pen Holder


• Pen Stand Yes


• Grip Latex-free silicone rubber


• Technology Patented electromagnetic resonance method


• Resolution 5080 lpi


• ExpressKeys™ 17 customizable, application-specific on optional ExpressKey™ Remote


• Touch Ring Yes - on optional ExpressKey Remote


• Touch Strips No


• Rocker Ring And Home Button Yes - on optional ExpressKey Remote


• Radial Menu Yes


• Precision Mode Yes


• Display Toggle Yes


• Dedicated Pan, Scroll, Zoom, Brush Size Yes


• ExpressKey™ Remote Dimensions 135 x 52 x 10 mm (5.3 x 2.0 x 0.4 inch)


• ExpressKey™ Remote Continuous Operation Up to 160 hours, if a key is pressed every 30 seconds


• ExpressKey™ Remote Charge Time Up to 2 hours


• Stand Adjustability Integrated pop-out legs for 20° angle (5° angle without legs)


• Orientation Right or left-handed use


• Size


• Cables Included USB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI2.0 to HDMI2.0 cable (3m),USB-C to USB-C cable (1.5m), DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (for ExpressKey Remote)


• PC and Mac Connection USB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port


• Ports included 4 x USB3 ports, 1 x USB C port, 1 x HDMI2.0 port, 1 x DP port, 2 USB-A Ports (one for ExpressKey Remote dongle)



• Audio Audio headset jack, built-in microphone


• Power Supply Input 100 to 240 VAC, 50/60Hz


• Power Supply Output 20 VDC, 2.25 A (max)


• Power Consumption


• Battery Rechargable Li-ion battery on included ExpressKey Remote


• Security Kensington® Lock Port (lock purchased separately)


• System Requirements PC: Windows® 7 or later (latest service pack/build), Mac: OS X 10.11 or later (latest update), USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
