Technical specifications

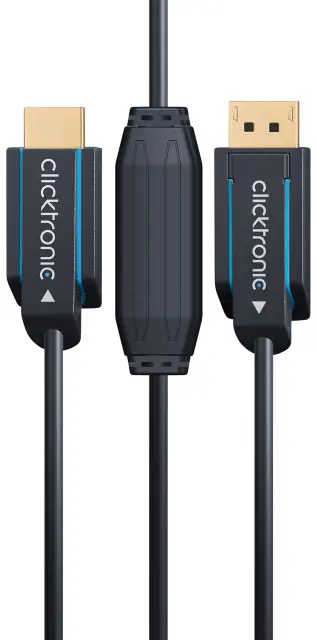

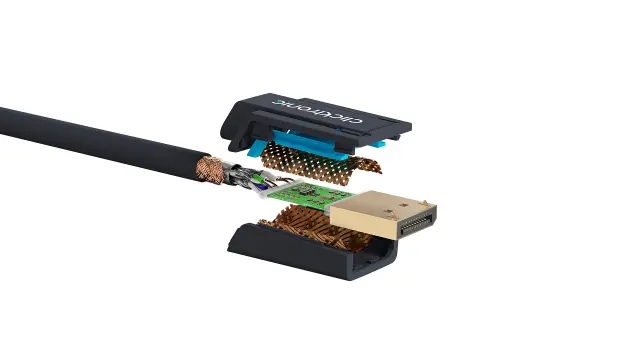

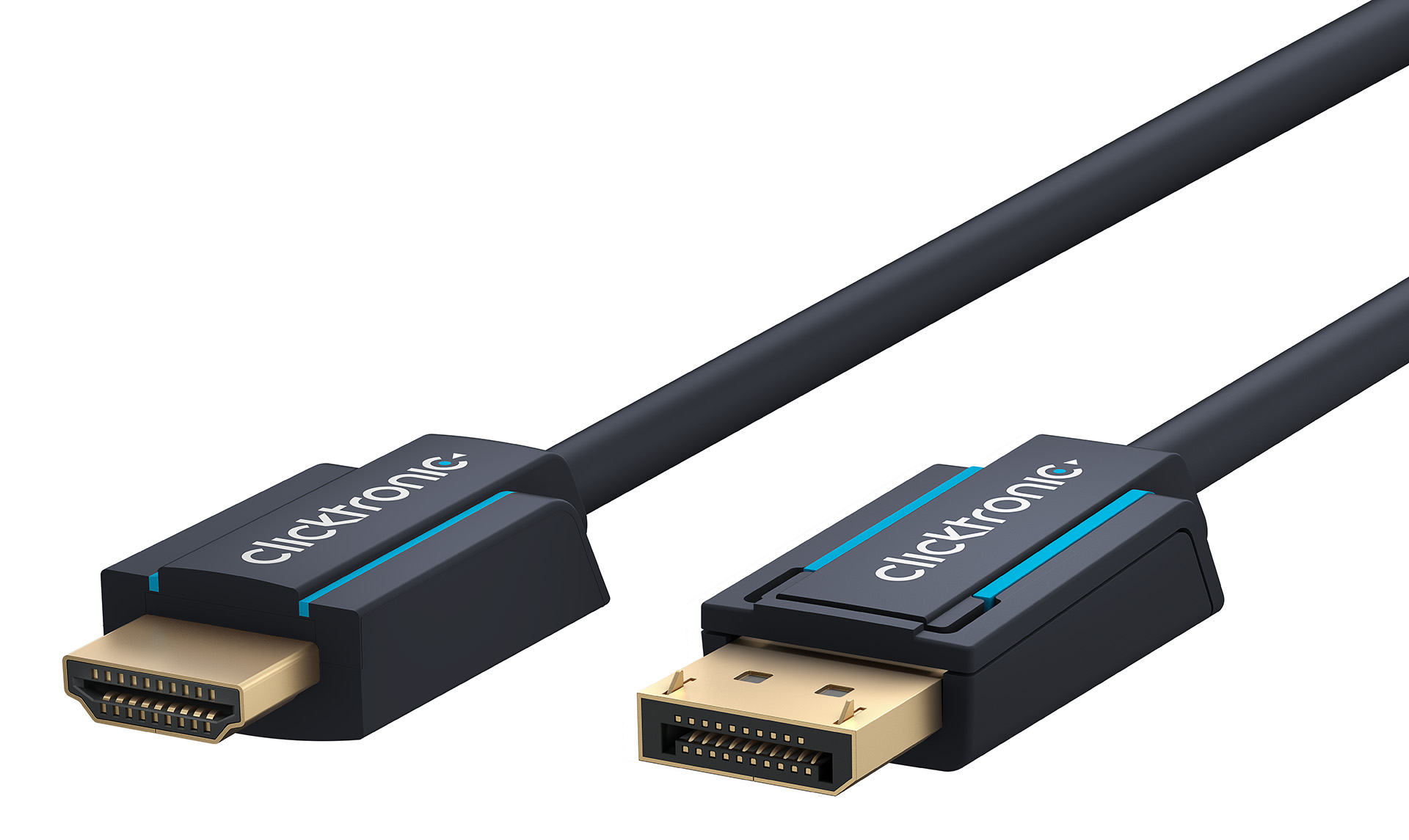

Connections

Connection, shielding: yes

Connection, type DisplayPort male

Connection 2, type HDMI™ male (type A)

Connection, length 59.3 mm

Connection, width 20.5 mm

Connection, height 10 mm

Connection 2, length 42.1 mm

Connection 2, width 20.4 mm

Connection 2, height 11.4 mm

Connection, housing material: PVC

Connection, contact material: gold (24 kt)

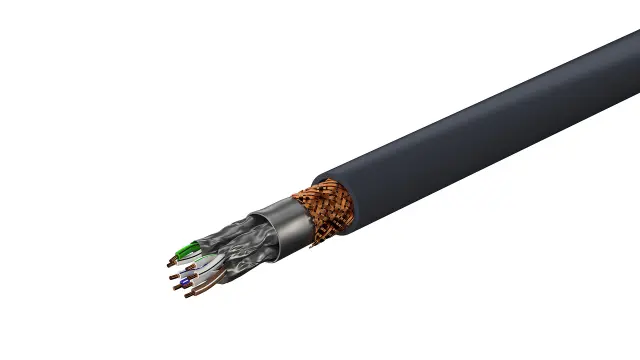

Cable

Cable length: 20,0 m

Cable type: round cable

Inner conductor material: OFC (99,9% oxygen-free copper)

Inner conductor cross-section: 0.32 mm²

Material cable sheath: PVC

AWG: 30

Number of shieldings: 3 x

Type 1, shielding: braid (copper) 112x

Cable sheath diameter (approx.): 6.0 mm

Kink protection: both sides

inner conductor, core diameter: 0.25

Inner Conductor number: 1 pieces

LSZH compliant: no

Type 3, shielding: foil (aluminium)

Ferrite core: no

Signal transmission

max. transmission rate: 10.2 Gbit/s

Impedance: 100 Ω

Signal amplification: no

General

Packaging type: Retail Box

Consumption Unit: 1 pc. in cardboard box

Markings: WEEE, CE, ULTRAHD 4K@50/60 Hz, HDMI™ High Speed with Ethernet

Special feature: flexible

Operating temperature from -10 °C

Operating temperature up to 80 °C

Warranty: 10 years
